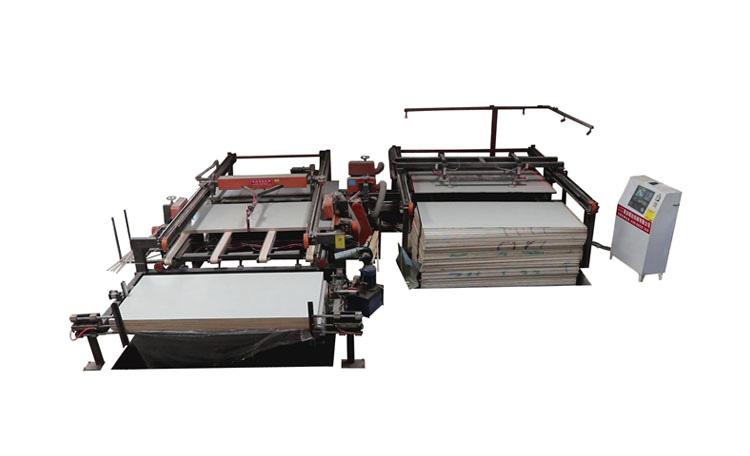

Jianye Shunda mechanical servo automatic edge sawing machine integrates the advantages of stepping system / PIC system.
1. The motor power output of the servo system is more stable, and no sensor proximity switch is used, which avoids the phenomenon of sawing the board due to the sensor and proximity switch failure or sudden power failure or damage, and avoids the tedious work of frequently damaged and replaced various switches of the edge sawing machine.
2. The system can memorize the position of the motor (SAW edge), even in case of sudden power failure, the original position can be automatically detected by artificial equipment changing position. The servo system can automatically diagnose and detect the external environment in the sawing process, and can manually monitor whether the solenoid valve is damaged.
3. Servo automatic edge sawing machine, with a more humanized design concept, caters to any requirements of sawing in the board industry, and the operation is simpler.
4. Manual / automatic start is an integrated operation mode. The automatic lifting table positioning uses integrated positioning function and automatic stacking, which makes the sawn boards more tidy and easier to pack and apply putty. It can save energy, reduce the cost of the plate industry, and enhance the power for enterprise market competition.
This product is suitable for saw edge of particleboard, density board, Malacca, plywood, blockboard, multilayer board, fireproof board, melamine base plate, building formwork, plastic steel membrane board, bamboo cross board, flame retardant board, packaging board, etc
Welcome to the website of Jianye Shunda Machinery Co., Ltd., adhering to the concept of innovation as the soul, quality as the root, integrity as the foundation, and safety as the basis to serve the majority of users.
Professional automatic saw gluing machine 20 years free customer service telephone: 400 6659 169
Parameters of automatic edge sawing machine | |
model | JS48-1-B-W |
Equipment system | PLC system / servo system |
Processing thickness (mm) | 3-60 |
Processing size (mm) | 1220-1240 2440-2460 |
Saw blade diameter (mm) | φ305 |
Saw blade speed (R / min) | 6100 |
Feeding speed (M / min) | 0-30 |
Equipped with power (kw) | 45 |
Saw edge motor (kw) | 7.5 |
