model | JS48-1-B |
Equipment system | PLC system / servo system |
Processing thickness (mm) | 3-60 |
Processing size (mm) | 1220-1240 2440-2460 |
Saw blade diameter (mm) | φ305 |
Saw blade speed (R / min) | 6100 |
Feeding speed (M / min) | 0-30 |
Equipped with power (kw) | 40 |
Saw edge motor (kw) | 7.5 |

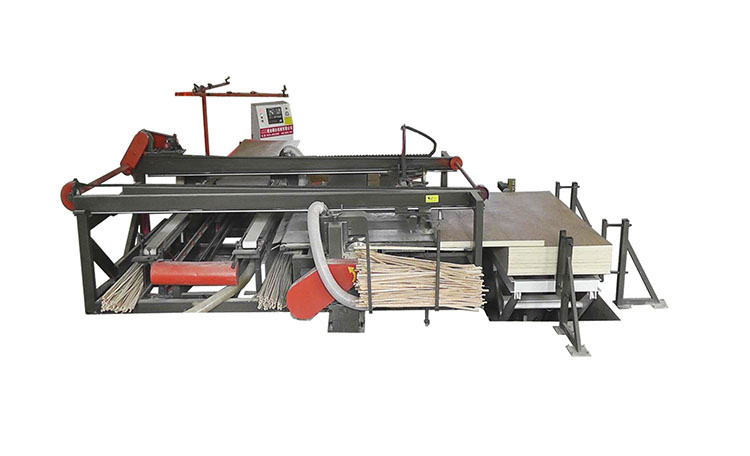

Jianye Shunda Machinery Co., Ltd. has developed a new type of plywood automatic edge sawing machine with high output, high performance and high quality. It is a kind of equipment suitable for all wood-based panel sawing processing and production, which has been highly praised by domestic and foreign customers. Its features are as follows:
1. Jianye Shunda plywood automatic edge sawing machine has one edge sawing machine, which is higher than the original two (new servo control system)
2. Jianye Shunda plywood automatic edge sawing machine has high speed (it only takes 19 seconds to saw 3 pieces of 18mm multi-layer boards, using the function of lower corner material delivery)
For example:
(1) The production of plywood can saw 20 pieces per second, 60 pieces per minute, 3600 pieces per hour, nearly 28800 pieces of plywood can be sawn in 8 hours working time, and 86400 pieces of plywood can be sawn in 24 hours (according to theoretical calculation).
(2) For the production of 18 cm multi-layer boards, each saw 3 pieces, each minute can saw 9 pieces, every hour saw 540 pieces, 8 hours work load saw more than 4320 pieces of multi-layer boards, 24 hours of work can saw 12960 pieces of plates (according to theoretical calculation).
3. The new design power transmission makes the edge sawing effect smoother, which ensures the product quality and improves a step.
4. The new frame design and finish machining, more reasonable, more stable, is your preferred product.
This product is suitable for saw edge of particleboard, density board, Malacca, plywood, blockboard, multilayer board, fireproof board, melamine base plate, building formwork, plastic steel membrane board, bamboo cross board, flame retardant board, packaging board, etc.
