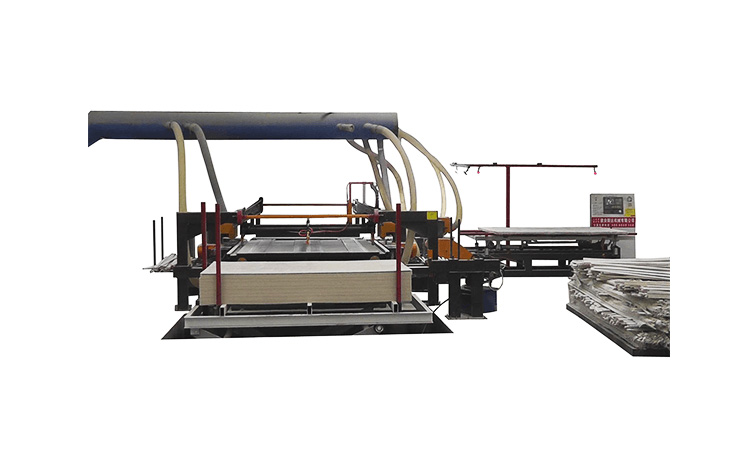

Automatic edge sawing machine for magnesium oxide board / glass magnesium plate

Automatic edge sawing machine for magnesium oxide board / glass magnesium plate

Automatic edge sawing machine for magnesium oxide board / glass magnesium plate
Automatic edge sawing machine for magnesium oxide board / glass magnesium plate
performance

Performance of Jianye Shunda automatic edge sawing machine:

1: Jianye Shunda machinery uses servo control system (new control system brain)

2: Use servo motor (stable power output, good edge sawing effect, which can not be compared with ordinary frequency conversion motor)

3: High precision positioning (the position deviation will not exceed 0.5mm due to the inertia generated by the rapid movement of the sawing table, which is several times of the accuracy of PLC system)

4: Without any proximity switch, the sensor can automatically memorize the saw edge position without maintenance, which reduces the maintenance cost (the proximity switch must be used in the step PLC system)  The sensor will often fail to work, resulting in sawn waste board)

5: System signal transmission using optical transmission (there will be no more control lines, reduce the failure frequency)

6: With memory function, it will not scrap a piece of board under normal air pressure (like the human brain, it can memorize the position of the board, and will not lose data even in case of sudden power failure)

7: Casting base (can reduce the vibration when sawing and improve the smoothness of sawing edge)

8: The frame is welded with 5mm thick rectangular pipe and finished by planer (ensuring the accuracy of edge sawing machine)

9: Use 8 saw blade to saw edge, rotate speed up to 7000 rpm, circulate lubricating oil (high speed is the key factor to ensure good edge sawing effect)

This product is suitable for saw edge of particleboard, density board, Malacca, plywood, blockboard, multilayer board, fireproof board, melamine base plate, building formwork, plastic steel membrane board, bamboo cross board, flame retardant board, packaging board, etc.

parameter
Parameters of automatic edge sawing machine
modelJS36-48-2-B
Equipment systemPLC system / servo system
Processing thickness (mm)3-60
Processing size (mm)915-1220  1830-2440
Saw blade diameter (mm)φ305
Saw blade speed (R / min)7000
Feeding speed (M / min)0-30
Equipped with power (kw)40
Saw edge motor (kw)7.5
