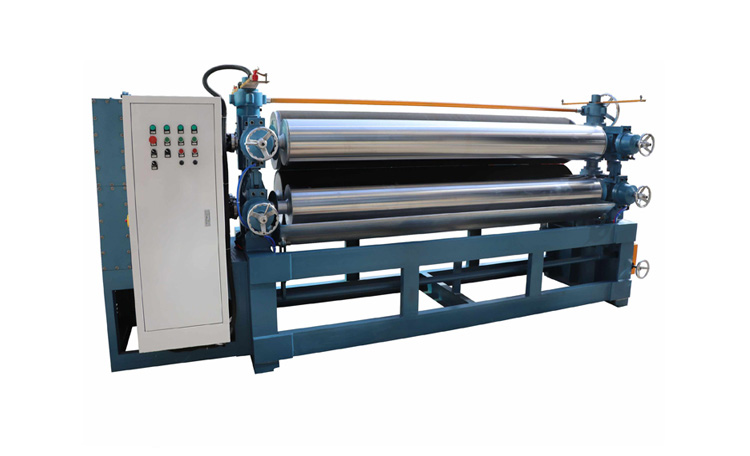

The gluing machine is suitable for one-sided or double-sided gluing of plywood, multi-layer board, veneer panel, joinery and other wood-based panels. The rubber cots are made of excellent rubber. After being processed by lathe and grinder, it has the advantages of uniform coating, simple operation and adjustable glue amount.
| Parameters of gluing machine | |
| model | 2.7m × Φ 415 four roller gluing machine |
| Assembly form | Front and rear assembly |
| Gluing form | two-sided |
| Transmission mode | Sprocket drive |
| Cot length (mm) | 2700 |
| Cot diameter (mm) | Φ 415 (with silk grain) |
| Extrusion roll diameter (mm) | Φ 297 (electroplating) |
| Linear velocity (M / min) | 30 |
| Main drive motor (kw) | 7.5 |
| Voltage (V) | 380 |
